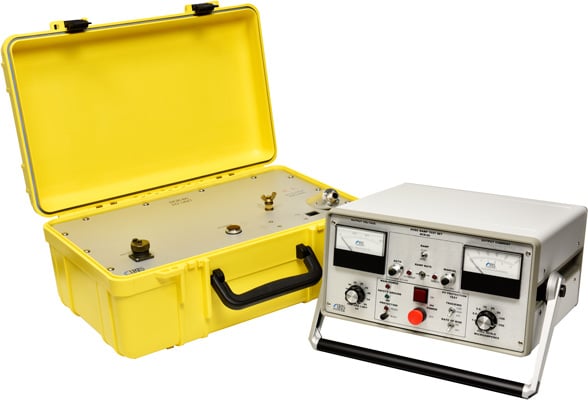

Iris Power DCR 60-2

Offline Test for Ramped high voltage DC test on stator winding insulation


The DCR 60-2 identifies problems in the stator ground wall insulation

RAMPED HIGH VOLTAGE DC TEST FOR STATOR WINDING INSULATION

  • Simple offline test
  • Lower risk of failing stator insulation than standard Hipot test
  • Identify onset of fault mechanisms
  • Diagnose damage and deterioration
  • Quick, accurate and repeatable results
  • Computer records voltage and currents for analysis
  • Automatically ramps voltage from 0 to 60kV
  •  Allows manual user-selected voltage control in the range from 0 to 60kV
  •  Ground presence detection and protection circuits
  •  Built-in safe winding discharge circuit
  •  USB connection to PC to: display results as test progresses, store multiple curves and test parameters for later analysis and display curves side-by-side for test comparison
  •  Examination of the current versus voltage curve allows test stoppage before failure of insulation and diagnosis of damage, defects, and deterioration mechanisms
  •  Automatic calculation of polarization index (PI)

Group Created with Sketch. Applications

  • Identify onset of fault mechanisms
  • Diagnose damage and deterioration
  • Examination of the current versus voltage curve allows test stoppage before failure of insulation and diagnosis of damage, defects, and deterioration mechanisms
  • Simple offline test
