    Periodic Online Rotor Magnetic Flux Analyzer

    Products and Solutions

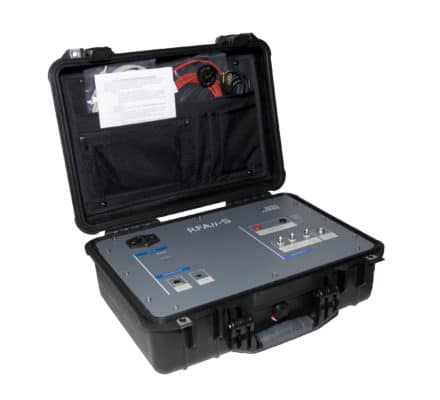

    The RFAII-S is portable instrument to collect and analyze flux data from any flux probe in real time, providing the user with data on rotor winding shorted turns.

    Motor
    Hydro Generator
    Works with These Assets

    Features

    Data Acquisition

    • Ideally used with permanently installed Iris Power Total Flux Probe (TFProbe) or Folding Flux Probe (FFProbe)
    • Inputs for shaft sync sensor (Keyphasor) for pole determination when shorts are detected.
    • Custom built, ultra-high resolution digital data acquisition module, including on-board switchable attenuation for maximum resolution  measurements using virtually any flux probe
    • High speed acquisition capability creates a table of results covering each pole and each load point

    Data Analysis

    • The RFAII and RotorFluxPro software provides instant analysis to indicate the presence and location any rotor poles with shorted turns .

    • Analyzing the voltage waveforms in real time, comparing average and discrete flux readings, and trending readings to identify anomalies in the flux due to shorted turns.

    Communication

    • Rugged portable instrument connects to a control computer using USB and Ethernet interfaces

    Group Created with Sketch. Applications

    • The most common method of monitoring flux involves using a portable instrument, the Iris Power RFAII-S, which is moved between machines that are  fitted with flux probes. The instrument is configured by means of a computer and includes Windows™–based control and data display software.
    • Alternatively, for remote monitoring, continuous monitoring systems using FluxTracIITM are available from Qualitrol-Iris Power. These can be  integrated with plant SCADA using OPC protocol interface and a variety of other plant data acquisition and monitoring protocols.
