Why Utilities Need Large Load Monitoring for Data Centers, AI, and Emerging Loads
Large load monitoring is the use of high-resolution, time-synchronized measurement data to understand how large, fast-changing electrical loads behave during normal operation, disturbances, and recovery. For utilities, it supports interconnection studies, model validation, real-time awareness, event analysis, and reliability planning.
The grid is entering a new era of demand growth, and the change is not defined by volume alone. It is defined by behavior. Across North America, utilities are seeing a rapid rise in large, electronically controlled loads such as hyperscale data centers, AI training clusters, cryptocurrency mining facilities, hydrogen electrolyzers, and other high-density industrial loads. These facilities can be large in megawatt size, fast in their response to system conditions, and materially different from the traditional load models many utilities have relied on for planning and operations.[3][4]
That shift matters because load is no longer simply something the grid serves. In many cases, it now behaves dynamically, with the ability to reduce, ramp, or reconnect in ways that directly affect frequency, voltage, oscillatory performance, and restoration planning.[3][4] According to the latest U.S. data center energy analysis from Lawrence Berkeley National Laboratory, data centers consumed about 4.4% of total U.S. electricity in 2023 and could reach roughly 6.7% to 12.0% by 2028, depending on how AI-driven growth unfolds.[1][2] For utilities, this means large-load monitoring is no longer a niche capability. It is becoming a core reliability requirement.
The Reliability Risk Is Already Here
The reliability concerns associated with emerging large loads are no longer theoretical. In its 2025 white paper and 2026 reliability guideline, NERC states that customer-initiated load reduction events and large-load oscillation events have already been observed on the bulk power system, and that these events can unfold within seconds, leaving operators with little or no time to respond in real time.[3][4] NERC’s January 2025 incident review is especially instructive: a 230 kV transmission fault in the Eastern Interconnection led to the simultaneous loss of approximately 1,500 MW of voltage-sensitive load, producing frequency and voltage impacts that operators had not anticipated.[5]
These events challenge long-standing assumptions about how load behaves during disturbances. Traditional utility models have often treated load as relatively passive, slowly varying, and predictable in the aggregate. Emerging large loads can violate all three assumptions. NERC’s analysis points to risks that include abrupt demand reduction during disturbances, over-frequency conditions caused by sudden load loss, oscillations associated with certain operating modes or control interactions, hidden voltage performance issues, and difficult post-disturbance reconnection behavior.[3][4] When these responses occur across multiple sites or within tightly coupled electrical regions, the system effect can become far more significant than any one facility would suggest on its own.
Why Traditional Monitoring Is No Longer Enough
Utilities have long relied on SCADA, meter data, and historical planning assumptions to understand system demand. Those tools remain important, but they were not designed to capture every aspect of fast-changing, electronically controlled load behavior. NERC’s 2026 guideline specifically recommends measured, time-synchronized, high-resolution data to support data collection, dynamic model assessment, interconnection studies, real-time monitoring, event analysis, voltage and frequency disturbance performance assessments, oscillation mitigation, and power quality analysis.[4] NERC’s Level 2 industry recommendation and follow-up aggregated report also emphasize stronger interconnection requirements, study processes, commissioning discipline, operational coordination, and high-speed disturbance monitoring for large-load interconnections.[6]
Monitoring assumption | Traditional load behavior | Emerging large-load reality | Monitoring implication |
Speed of change | Demand is generally expected to vary gradually and predictably at the system level. | Emerging large loads can exhibit rapid fluctuations, cyclical ramping, or sudden changes in demand, sometimes within seconds.[3][4] | Utilities need high-speed disturbance recording and time-synchronized measurements to see what happened during the first moments of an event.[4][6] |
Response to disturbances | Load is often assumed to remain broadly passive during short-duration faults or voltage events. | Large voltage-sensitive loads may reduce demand or transfer to backup generation during disturbances, creating unexpected system effects.[3][5] | Utilities need disturbance monitoring that captures fault behavior, sequence of events, and post-event response at the point of interconnection.[4][6] |
Predictability | Planning models often rely on aggregate assumptions about load composition and performance. | NERC emphasizes that dynamic models for emerging large loads must be assessed, verified, and validated using field data because conventional assumptions may not reflect actual behavior.[4][6] | Monitoring must support model verification and validation, not just event archiving.[4][6] |
Recovery | Reconnection is often treated as manageable through normal operator workflows and reserve assumptions. | Abrupt recovery or reconnection can stress balancing reserves and complicate restoration if large facilities return quickly or in uncoordinated ways.[3][4] | Utilities need visibility into post-disturbance ramping and clear operating protocols supported by measured data.[4][6] |
Power quality and oscillations | Traditional monitoring may focus more on steady-state values than waveform detail or oscillatory interactions. | NERC identifies forced oscillations, voltage performance concerns, and power quality issues such as harmonics as important emerging risks.[3][4] | Monitoring infrastructure must support synchronized disturbance analysis and power quality visibility, especially at large-load interconnections.[4][6] |
In practice, this means utilities need visibility that extends beyond average load trends. They need to see what happens during the first cycles and seconds of an event, how a large facility responds to voltage dips or frequency deviations, whether controls or protection settings contribute to unexpected behavior, and whether field performance matches the assumptions used in planning studies.[4][6] Without that visibility, utilities are left trying to explain dynamic events with data that was never intended for dynamic analysis.
What Large Load Monitoring Means in Practice
Large load monitoring is not just about recording an event after the fact. It is about creating an evidence-based foundation for planning, operations, and validation. At a minimum, utilities need the ability to capture high-speed fault and disturbance behavior at and around the point of interconnection, establish an accurate sequence of events during rapid load changes, measure voltage, frequency, and other synchronized electrical parameters with adequate time alignment, and evaluate power quality effects such as harmonics and disturbance-related waveform changes.[4][6]
Just as important, the monitoring architecture must support analysis and validation. Utilities need to quantify how much load was reduced during a disturbance, determine whether oscillations were present and how strongly they were damped, assess ride-through performance, and verify that dynamic models represent actual facility behavior.[4][6] NERC repeatedly emphasizes that accurate modeling, model verification, and post-event review are foundational to reliable integration of emerging large loads.[3][4][6] In other words, monitoring is not a parallel activity to planning and operations. It is increasingly a prerequisite for both.
How Qualitrol IDM+ Supports This Need

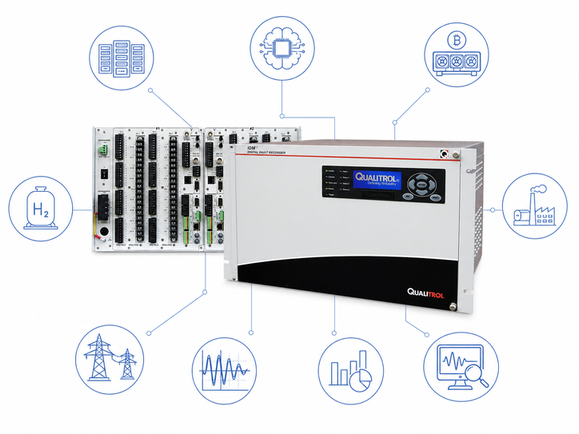

IDM+ is Qualitrol’s multifunction power system monitor for fault recording and location, with support for phasor measurement, Class A power quality monitoring, and disturbance analysis in substation and grid-reliability applications.[7] For utilities facing new interconnection and operational challenges from data centers, AI infrastructure, cryptocurrency mining, hydrogen production, and other emerging large loads, that combination is highly relevant.
From a practical standpoint, IDM+ can help utilities capture the granular electrical evidence needed to understand what happened during a fast event and why. That includes disturbance data to support post-event analysis, synchronized measurements that support visibility into dynamic system behavior, and power quality monitoring that can be important when facilities introduce harmonic content or other waveform-related concerns at the point of interconnection.[4][6][7] In an environment where NERC is calling for high-speed disturbance data capture, model validation, and stronger operational situational awareness, utilities need instrumentation that does more than archive data. They need instrumentation that helps turn events into actionable understanding.[4][6]
IDM+ also aligns with an increasingly important operational reality: utilities benefit when disturbance recording, synchronized measurement, and power quality visibility are not fragmented across multiple disconnected tools. A more integrated measurement foundation can simplify event reconstruction, strengthen coordination across planning and operations teams, and provide a clearer basis for model verification and interconnection discussions.[4][7] For utilities preparing for load growth from AI, data centers, hydrogen production, and other emerging sectors, that kind of clarity can reduce uncertainty at exactly the point where risk is increasing.
Why Utilities Are Acting Now
NERC is clear that the industry is moving toward greater scrutiny of large-load performance and stronger expectations around data, modeling, and coordination. Its 2026 reliability guideline describes the current guidance as a bridge to future standards activity, and the organization has separately stated that it is updating registry criteria and reliability standards to account for emerging large-load needs.[4] In parallel, NERC’s large-load action plan highlights continued concern around customer-initiated load reductions, oscillations, and the need for instrumentation, studies, commissioning discipline, and operational coordination as these loads continue to proliferate.[4][6]
For utilities, the implication is straightforward. The organizations that invest early in measured visibility, validated models, and better event intelligence will be better positioned to support interconnections with greater confidence and lower operational risk. Those that delay may find themselves managing increasingly dynamic system behavior with incomplete data and outdated assumptions.
The Bottom Line
Utilities are not simply seeing more load. They are seeing a different kind of load. As large, fast-acting, electronically controlled facilities become a more prominent part of the demand mix, reliability depends more heavily on understanding how those loads actually behave during normal conditions, disturbances, and recovery.[3][4][6]
Qualitrol IDM+ supports that need by helping utilities establish the high-resolution, time-aligned measurement foundation required for modern large-load monitoring.[7] In a grid environment where assumptions are no longer enough, measured behavior is what enables better planning, stronger operations, and more confident reliability decisions.
Frequently Asked Questions
What is an emerging large load?
NERC defines a large load as a commercial or industrial individual load facility, or an aggregation of facilities at a single site behind one or more points of interconnection, that can pose reliability risks due to its demand, operational characteristics, or other factors. Examples include data centers, cryptocurrency mining facilities, hydrogen electrolyzers, manufacturing facilities, and arc furnaces.[3][4]
Why are data centers receiving so much attention from utilities?
Data centers are growing quickly and can represent very large, concentrated electrical demand. Lawrence Berkeley National Laboratory estimates that U.S. data centers used about 176 TWh in 2023 and could rise to 325 to 580 TWh by 2028.[1][2]
Why is high-resolution monitoring important?
Fast events can unfold in cycles or seconds. NERC recommends high-speed, time-synchronized monitoring because traditional low-resolution data may not be sufficient to analyze disturbance response, oscillations, model accuracy, or ride-through behavior.[4][6]
What does NERC recommend for large-load interconnections?
NERC recommends stronger interconnection requirements, more complete steady-state and dynamic modeling, commissioning and validation processes, high-speed disturbance monitoring, and clearer real-time operating protocols between utilities and large-load operators.[4][6]
How does Qualitrol IDM+ help?
Qualitrol positions IDM+ as a multifunction monitor for fault recording, phasor measurement, power quality, and disturbance analysis. That makes it well suited to supporting visibility and event analysis at large-load interconnection points and across broader grid monitoring applications.[7]
Is this only a planning issue?
No. NERC frames emerging large loads as both a planning and operations issue. Risks include demand forecasting errors, balancing challenges, stability concerns, disturbance response, and post-event restoration impacts.[3][4][6]
Discuss your large-load monitoring requirements with a Qualitrol grid-monitoring specialist or review the IDM+ specifications and contact our team.
