How Multifunctional Disturbance Recorders Save Utilities Millions in Power Grid Costs

Power grid operators face mounting pressure to reduce costs while improving reliability. Enter the multifunctional disturbance recorder - a game-changing technology that's helping utilities identify problems before they become expensive failures. The Qualitrol IDM+ device combines six recording methods in one box to deliver unprecedented visibility into network behavior, with most utilities achieving full payback within the first year.

What Makes Multifunctional Disturbance Recorders Different?

Unlike traditional monitoring equipment that captures only one type of data, the IDM+ integrates six essential recording functions into a single platform: fast disturbance recording, slow disturbance recording, power quality monitoring, traveling wave fault location, sequence of event recording, and phasor measurement streaming. This comprehensive approach enables utilities to make data-driven decisions that increase reliability, improve power quality, and reduce system losses.

More importantly, these devices help operators spot problems in anticipation of blackouts or network losses, allowing them to fix issues before they cause significant financial damage.

Slashing Fault-Finding Costs with Pinpoint Accuracy

Traditional fault location methods rely on impedance calculations with 1-15% accuracy of line length. This means patrol teams often spend hours searching miles of line to find the actual fault point. Traveling wave fault location changes this completely, providing accuracy within a single tower span regardless of line length.

_{Table 1 – Cost of sending out ground line patrol team}

The cost savings are substantial. Table 1 estimates the expenses incurred when patrol teams must search extended areas due to inaccurate fault location - assuming the IDM+ monitors just two circuits, the savings in reduced patrol time alone justify the investment. When faults occur in rough terrain requiring helicopter assistance, the cost differential becomes even more dramatic, as shown in Table 2.

_{Table 2 – Cost of aerial patrol on the fault-finding process}

Beyond the immediate response, accurate fault location helps prevent recurring problems. Intermittent faults that can be reclosed often leave partial damage at the fault site. If not accurately located and inspected, this damage can cause subsequent trips and voltage dips, eventually transitioning to permanent line outages. Table 3 quantifies these preventable fault costs.

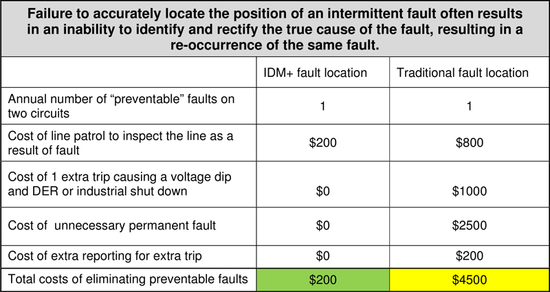

_{Table 3 – Cost of line faults related to preventable faults}

Catching Circuit Breaker Problems Before They Cascade

Circuit breakers are critical protection devices, but many issues go unnoticed during normal operation. Stuck mechanisms, slow operation times, and prolonged fault clearances often remain hidden until the breaker fails during a subsequent fault, resulting in wider area tripping than necessary.

Using fast disturbance recording, sequence of event recording, and automated record analysis, the IDM+ detects these problems early. Table 4 estimates the substantial costs associated with preventable circuit breaker failures, demonstrating the value of catching these issues before they escalate.

_{Table 4 – Cost of preventable failed circuit breaker}

Identifying Protection Relay Maloperation Early

Analyzing Digital Fault Recorder (DFR) records reveals relay maloperation patterns that warn of possible non-operation during future faults. This early warning system helps prevent cascade failures that can affect large portions of the network. Table 5 outlines the quantifiable costs saved by pinpointing protection system issues before they cause major disturbances.

_{Table 5 – Costs of identifying maloperation}

Automated Analysis: From One Week to Four Hours

During storm conditions, networks can generate 200-300 DFR records requiring analysis. Manually reviewing these records takes one full week, even though most show correct operation. The automated Record Analysis feature revolutionizes this process by detecting only non-compliant records and flagging genuine problems.

_{Table 6 – Costs on using automated analysis}

This reduces storm record analysis from one week to just four hours. Table 6 shows the cost savings from automated analysis, including reduced engineering time, faster problem resolution, and better resource allocation during critical recovery operations.

The Hidden Costs of Power Quality Problems

Poor power quality costs the European economy up to €150 billion annually, while U.S. losses range from $119 billion to $188 billion according to EPRI research. For network operators, these costs manifest through equipment damage, premature aging, and customer complaints.

The IDM+ detects all major power quality issues before they cause expensive damage:

Voltage sags cause microprocessor-based control systems to malfunction, potentially stopping entire processes. Contactors and relays trip unexpectedly, resulting in lost load and revenue. Industrial customers face production stoppages and potential regulatory fines.
Very short interruptions (milliseconds to two seconds) trip protection devices and cause data loss in processing equipment. Sensitive equipment like PLCs and ASDs may stop if not designed for ride-through, leading to process stoppages.
Long interruptions (over 1-2 seconds) stop all equipment, causing immediate revenue loss and potential regulatory fines. These typically result from equipment failure, storms, lightning, or protection device issues.
Voltage spikes from lightning or switching operations can destroy electronic components and insulation materials, cause data loss, and create electromagnetic interference. Despite lasting only microseconds to milliseconds, spikes can reach thousands of volts.
Voltage swells occur when heavy loads start or stop, or when transformers are poorly regulated. They cause data loss, screen flickering, and equipment damage when voltage exceeds ratings.
Harmonic distortion from non-linear loads creates the most underestimated costs. Harmonics cause neutral overload, equipment overheating, machine efficiency loss, communication interference, and metering errors. Most critically, they reduce the lifetime of high-value assets like transformers. A transformer expected to last 30-40 years might need replacement 10 years early due to harmonic pollution - a massive unplanned capital expense.
Voltage fluctuation causes visible light flicker, generating customer complaints and regulatory fines while damaging the utility's reputation, even though direct costs may be lower than other issues.
Electrical noise from electromagnetic interference causes data loss and processing errors in sensitive equipment. While usually not immediately destructive, cumulative impacts add up over time.
Voltage unbalance in three-phase systems creates negative sequence components, particularly harmful to three-phase motors, causing increased heating, reduced efficiency, shorter life, and costly downtime.

The Transformer Aging Crisis

A distribution transformer typically delivers 30-40 years of service. However, increased harmonic pollution can force replacement 10 years early. This represents not just an unplanned capital expense, but a complete loss of remaining investment value. Most concerning, these effects remain hidden until catastrophic failure or diagnostic testing reveals critical degradation.

Light flicker, while less financially damaging than harmonics, severely impacts utility reputation. Every flicker complaint requires dispatching inspection engineers to customer sites, diverting resources from planned work and straining customer relationships.

Comprehensive Cost Savings Across Operations

Strategic deployment of multifunctional disturbance recorders enables utilities to realize savings across multiple areas:

Reduced line and equipment losses through lower currents and better efficiency.
Released blocked capacity, avoiding capital investment in new infrastructure.
Improved power factor, avoiding penalties and earning incentives.
Lower maximum demand charges through better load management.
Tax benefits from accelerated depreciation on power quality equipment.
Better voltage profiles improve customer equipment efficiency.
Reduced harmonic distortion, cutting copper, core, and stray losses.
Prevented equipment malfunctions, avoiding production loss costs.
Eliminated unplanned outages through proactive maintenance.
Extended equipment life from reduced electrical and thermal stress.
Lower operating temperatures maximize infrastructure ROI.

The Bottom Line

Multifunctional disturbance recorders transform utilities from reactive problem-solvers into proactive system managers. By providing comprehensive visibility into network behavior, these devices help operators identify and correct issues before they escalate into expensive failures, extended outages, or equipment damage.

With payback periods typically under one year and cost savings spanning fault location, equipment protection, power quality management, and automated analysis, the IDM+ represents a strategic investment in grid reliability and operational efficiency. As power quality problems continue to grow with increasing non-linear loads, having the tools to detect and address issues early becomes not just beneficial, but essential for maintaining competitive operations.
