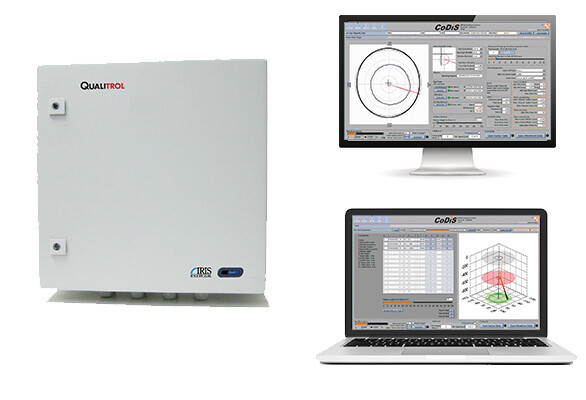

AGTracII

The AGTracII and Capacitive Air Gap Sensor provides continuous monitoring of the air gap between the rotor and the stator on Hydro Generators.

• Air Gap Capacitive Sensors(4 to 16 sensors)
• Sensor Signal Conditioners
• Sync Sensor (1 sensor)
• Continuous Monitoring Instrument
• Data Management Software
• Processes the acquired signals in real time
• Detects the various machine modes of operation:– Stationary– Run up– Normal operation– Transient– Coast down
• Determines alarm conditions and sends alerts to the plant SCADA system
• Communicates with the plant SCADA system
• Transfers condition data to the Data Management Software

• Measuring Ranges Available: 3 mm to 15 mm, 5 mm to 25 mm, 10 mm to 50 mm
