What is Traveling Wave Fault Location

The Power of Precision: How Traveling Wave Systems Revolutionize Fault Location and Enhance Grid Reliability
In today’s interconnected world, reliable electricity supply is paramount. Power outages disrupt lives, businesses, and critical infrastructure, leading to economic losses and safety concerns. Utilities are constantly striving to minimize outage durations and enhance grid resilience. A key factor in achieving this objective is the ability to rapidly and accurately locate faults on transmission lines. This blog post delves into the innovative technology of Traveling Wave Fault Location (TWFL) and its transformative impact on fault location and grid reliability.
The Urgency of Swift Fault Location
When a fault occurs on a transmission line, the imperative is to isolate the faulted section, initiate repairs, and restore normal operation as swiftly as possible. This urgency stems from the economic implications of prolonged outages and the regulatory pressures to maintain high quality of supply. Utilities are held accountable for minimizing “customer minutes lost,” a key performance indicator used by regulators to assess their efficiency. Particularly in sub-transmission networks operating below 100kV, the need for rapid fault location is amplified. These networks are often more extensive, less robust, and have limited redundancy, making them susceptible to faults and increasing the impact on customer outages.
Fault Spectrum: Permanent, Intermittent, and Transient
Faults on overhead transmission lines can manifest in three primary categories: permanent, intermittent or recurring, and transient. Permanent faults, while infrequent, necessitate prompt location and repair. Intermittent faults, triggered by factors like damaged insulation, vegetation interference, or conductor clashes, can reoccur and pose a threat to long-term reliability. Transient faults, often caused by birds, lightning, or bushfires, are typically one-off events.
Traditionally, intermittent and transient faults received less attention. However, the escalating focus on supply quality and the potential for these faults to evolve into permanent ones have shifted this perspective. Analyzing all line trips, irrespective of their nature, has become crucial to prevent escalation and proactively maintain grid stability.
Limitations of Traditional Impedance-Based Methods
Traditional fault location methods relied primarily on impedance calculations. These techniques, while serving a purpose, often lack the precision and consistency needed to pinpoint the exact fault location, particularly for intermittent or transient events. The ambiguity arising from impedance-based results can lead to uncertainty regarding the specific tower with a damaged insulator or the span affected by vegetation encroachment, hindering targeted maintenance efforts.
Enter Traveling Wave Systems: A Paradigm Shift in Fault Location
Modern Traveling Wave Fault Location TWFL systems have emerged as a game-changer, offering a highly accurate and reliable alternative to traditional methods. TWFL leverage the phenomenon of traveling waves generated by a fault. When a fault occurs, the resulting power arc and voltage step change create traveling waves that propagate along the transmission line in both directions. TWFL fault locators, strategically positioned at the line ends, precisely capture the arrival time of these waves using GPS as a time reference.
The captured time tags are then transmitted to a central location, where sophisticated algorithms, combined with information about the line length and wave propagation velocity, calculate the distance to the fault. This double-ended (Type D) method eliminates the need for operator intervention and provides automated, real-time fault location data.
Precision Redefined: Unraveling the Accuracy of TWFL
The accuracy of TWFL-derived fault locations hinges on three critical factors: the precision of the GPS time tag, the accuracy of the line length data, and the assumed velocity of wave propagation. The speed of propagation on overhead lines is generally considered to be the speed of light (300m/µs) and remains largely unaffected by conductor characteristics, tower construction, or phase transpositions.
The line length, typically provided by the utility, represents the sum of point-to-point distances between towers, often referred to as the ‘physical’ line length. To account for the sag in conductors, a default velocity factor of 98.98% (297m/µs) is commonly applied.
The evolution of TWFL technology has witnessed remarkable advancements in GPS time tagging accuracy. Older TWFL equipment had a GPS time tag accuracy of 1µs, resulting in achievable accuracies of around 200 meters. However, the latest generation of TWFL boasts a GPS time accuracy of 100 nanoseconds, with a resolution of 10 nanoseconds, enabling a theoretical accuracy of approximately 30 meters. Field trials conducted in the Far East have demonstrated accuracies as impressive as 45 meters, with typical accuracies of 60 meters after line calibration using transients from switching operations.
This remarkable accuracy translates to the ability to pinpoint faults to within a single span using existing TWFL equipment and, more impressively, to within a single tower using the latest generation of TWFL.
It is important to note that discrepancies in the length of cabling from protection current transformers (CTs) to the relay room at each end of the line can introduce errors. These variations should be considered for optimal accuracy.

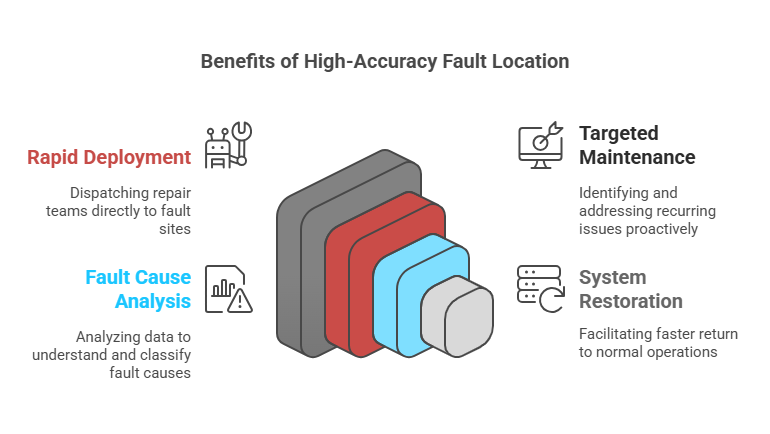

Reaping the Rewards: Benefits of High-Accuracy Fault Location
The high accuracy and consistency delivered by TWFL empower operation engineers with unprecedented confidence in fault location data. This precision enables several key benefits:
- Rapid Deployment of Repair Teams: Accurate fault location allows utilities to dispatch repair crews directly to the fault site, eliminating time wasted searching for the fault location. This translates to quicker repairs and faster restoration of service.
- Targeted Preventive Maintenance: TWFL provides valuable insights into the nature and location of intermittent or transient faults. Analyzing trends in these events enables utilities to identify recurring issues, such as polluted or damaged insulators or vegetation encroachment, and proactively address them through targeted maintenance. This proactive approach minimizes the risk of these faults evolving into permanent outages.
- Enhanced Understanding of Fault Causes: TWFL data can help pinpoint the root causes of faults. For instance, correlating fault locations with lightning detection systems provides strong evidence for lightning-induced faults. In other cases, TWFL has revealed bird activity as the culprit behind faults initially attributed to lightning, highlighting the system’s ability to uncover less obvious causes and improve fault classification accuracy.
- Improved System Restoration: The swift and accurate identification of fault locations facilitates a faster return to normal operating conditions for faulted networks. This minimizes customer outage times and enhances overall system reliability.
Communication Infrastructure: The Backbone of Double-Ended TWFL

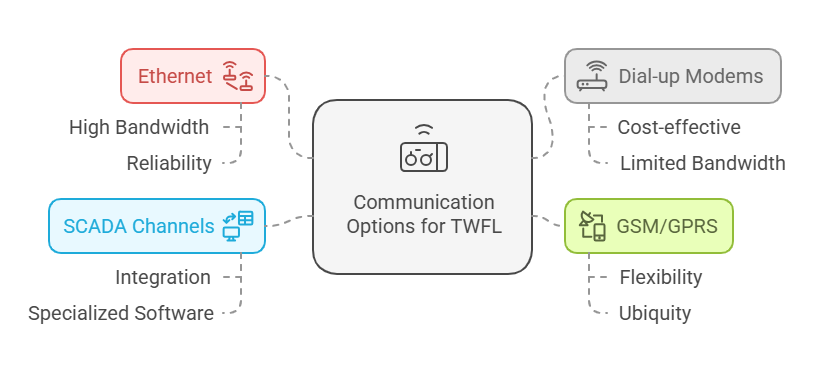

The double-ended (Type D) fault location method employed by TWFL relies on the seamless exchange of information between the line ends and a central processing location. Robust communication infrastructure is therefore essential for the effective operation of TWFL. Several communication options are available, each with its own considerations:
- Ethernet: Ethernet connections offer high bandwidth and reliability, making them a preferred choice where available.
- Dial-up Modems: Dial-up modems provide a cost-effective solution, particularly in scenarios with limited bandwidth requirements.
- GSM/GPRS: GSM (Global System for Mobile communications) and GPRS (General Packet Radio Service) modems leverage the ubiquity of mobile phone networks, offering flexibility in areas where other communication options are limited.
- SCADA Channels: Integrating TWFL data into existing SCADA (Supervisory Control and Data Acquisition) systems is gaining traction, particularly in the US. This approach utilizes established communication channels and requires specialized software on the SCADA master to process TWFL data and calculate fault locations.
The choice of communication method depends on factors such as existing infrastructure, bandwidth requirements, cost considerations, and the specific needs of the utility.
Installation and Signal Monitoring: Practical Considerations
TWFL systems are often retrofitted into existing substations, emphasizing the need for easy and non-intrusive installation procedures. The method of signal monitoring depends on the configuration of the line termination:
- Current Monitoring: In substations with multiple lines connected to a busbar and low terminating impedance, monitoring the current component of the traveling wave is preferred. This is typically achieved using small split core current clamps placed around the CT wiring in the protection panel. An air gap is introduced to filter out low-frequency power signals.
- Voltage Monitoring: When lines terminate in transformers or double circuit lines with the possibility of one line being switched out, the terminating impedance becomes high. In these cases, monitoring the voltage component of the traveling wave is necessary. The preferred method involves utilizing the line CVT (Capacitor Voltage Transformer), if available. A toroidal CT is installed in the earth connection of the CVT capacitor stack to capture the high-frequency components of the line voltage, which are effectively amplified. The signal is then transmitted to the relay room via a shielded cable and monitored using a standard split core CT. While this technique offers good high-frequency coupling, it requires a line outage for toroidal CT installation and new cabling to the relay room.
Complementing the signal monitoring setup, a GPS antenna is typically mounted on the roof of the substation, ensuring a clear view of the sky for accurate time synchronization.
TWFL in Action: Case Studies and Field Results
The efficacy of double-ended TWFL in real-world applications is well-documented through numerous case studies and field deployments:
- Scotland: A two-year study on a relatively short 35.1 km, 400kV circuit in Scotland consistently demonstrated the accuracy of TWFL.
- South Africa: Results from a 140 km circuit in South Africa over a six-month period further validated the reliability of TWFL, with line patrols confirming the accuracy of TWFL-derived fault locations every time. In contrast, impedance relay results showed significant errors ranging from 1.7% to 23%.
- USA: A utility in the USA equipped 12 x 500kV circuits with TWFL devices. Comparisons between TWFL data and lightning detection systems during a storm showed strong correlation, even in cases where the line did not trip, highlighting the sensitivity of TWFL to lightning-induced traveling waves.
- Dominion 22 500KV Circuit: This 39.07-mile line, constructed in the 1920s with wooden towers, presented challenges for traditional fault location methods due to typically high impedance ground faults. TWFL, however, successfully triggered and located all 10 line trips since installation, demonstrating its effectiveness in challenging scenarios.
These real-world examples underscore the reliability, accuracy, and versatility of TWFL in pinpointing fault locations across diverse network configurations and fault types.
Future Horizons: Expanding the Reach of TWFL
The success of TWFL in high-voltage transmission systems has paved the way for expanding its application to lower voltage systems, which often present complexities like multiple taps and branches. Ongoing research and development efforts are focused on enhancing TWFL algorithms and software interfaces to handle these intricacies effectively. Additionally, exploring alternative voltage transducers to facilitate voltage monitoring in scenarios where CVTs are not available remains an active area of investigation.
Conclusion: TWFL – A Cornerstone of Modern Grid Reliability
Traveling Wave Systems have revolutionized fault location, providing utilities with a powerful tool to enhance grid reliability and minimize outage durations. The accuracy, automation, and ability to analyze all fault types make TWFL an indispensable asset for modern power systems. As research and development continue to push the boundaries of this technology, TWFL will play an increasingly critical role in ensuring a stable, resilient, and efficient power grid for the future.
