Hydro Generators

Iris Power Qualitrol solutions provide information required by generator operators to understand the current condition of their assets, prioritize corrective measures and plan maintenance outages prior to failures.

Stator Core Lamination Integrity Testing

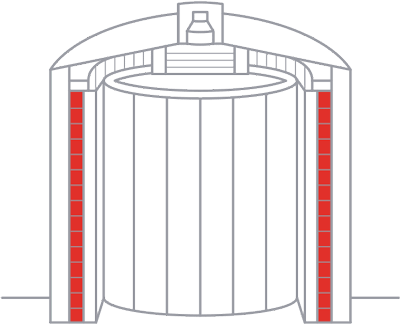

Stator Partial Discharge Monitoring

Partial discharge monitoring provides information on the small electrical sparks that occur within the insulation as a result of aging or deterioration. Iris Power solutions help plan maintenance requirements prior to insulation failure and shorts.

Stator End-Winding Vibration Monitoring

Stator End-Winding vibration caused by loosening of the windings and thermal cycling can lead to fracturing of the copper conductors in the windings or faults due to insulation wearing. Iris Power solutions provide information on the location and severity of end-winding vibration in order for corrective actions.

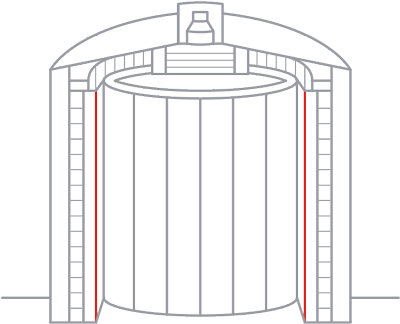

Stator Wedge Tightness Testing

Loose stator wedges can lead to coil vibration and erosion of stator insulation. Iris Power stator wedge tightness testing provides a consistent and quantitative means of identifying the location and severity of loose stator wedges in order to plan rewedging or other necessary repairs.

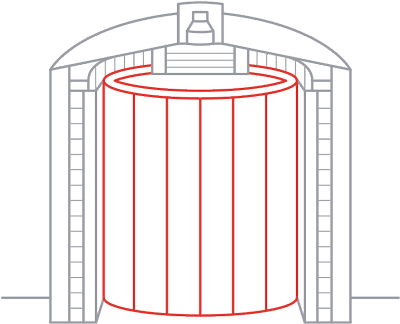

Rotor Core Shorted Turn Detection

Rotor magnetic flux variations are the result of the degradation of the rotor winding insulation by mechanisms like load cycling, thermal aging and contamination. Iris Power provides solutions for measuring the magnetic flux in the generator in order to plan maintenance requirements.

Stator Core Lamination Integrity Testing

Stator core lamination integrity can be degraded through thermal and mechanical stresses. The Iris Power EL CID test detects shorted laminations and is the accepted world-wide solution for determining maintenance needs.

Air Gap Monitoring

Air Gap variations occur with the flexing or movement of the stator and rotor due to operating centrifugal forces, magnetic forces and thermal effects.

Customer Value

15k

Global Sensor Installs on Rotating Machines

#1

On-line Monitoring Provider for Motor and Generator windings

400k

Test results in Iris Power's PD database

Avoid a Short & Long Term Catastrophic Failure

SYMPTOM CHECKER

Stator Partial Discharge (PD) Stator End-winding Vibration Air Gap Stator Wedge Tightness Stator Core lamination Degredation Rotor Shorted Turns Insulation Degradation Shaft Voltage

Iris Power solutions provide information on the location and severity of insulation integrity in order to plan maintenance requirements prior to insulation failure and shorts through partial discharge monitoring of small electrical sparks that occur within the insulation as a result of aging or deterioration.

Automated measurements
Integrated key trending parameters
Remote alarms indicating the need for more detailed review of data

Iris Power Epoxy Mica Capacitors (EMC)

Motors and Generators Partial Discharge Monitoring

Learn More

Iris Power GuardII

Motors and Generators Partial Discharge Monitoring

Learn More

Iris Power HydroTracII

Motors and Generators Partial Discharge Monitoring

Learn More

Iris Power PDA-IV

Motors and Generators Partial Discharge Monitoring

Learn More

Iris Power Corona Probe (PPM-97)

Motors and Generators Partial Discharge Monitoring

Learn More

PDTech DeltaMaxx

Motors and Generators Partial Discharge Monitoring

Learn More

Iris Power solutions provide information on the location and severity of end-winding vibration in order for corrective actions to be made prior to winding fractures or insulation failures and shorts.

Directly measure the level and trend in vibration from stator endwindings
Fiber optic accelerometers impervious to high magnetic and electric fields
Up to 2 years of storage for archiving daily vibration data

s-m

Iris Power EVTracII

Vibration Monitoring

Learn More

Iris Power EVAII Sensor Kit -Air-cooled

Vibration Monitoring

Learn More

Iris Power GuardII

Motors and Generators Partial Discharge Monitoring

Learn More

Air gap monitoring has become an established tool for dynamically measuring the distance between the stator and the rotor in salient pole machines such as hydro-generators, pump storage generators and large water pump motors.

Low profile capacitive sensors designed for accurate distance measurement
Real time analysis, alarm management and trending
Communicate with plant SCADA system

Iris Power AGTracII

Air Gap Analysis

Learn More

Iris Power stator wedge tightness testing provides a consistent and quantitative means of identifying the location and severity of loose stator wedges in order to plan rewedging or other necessary repairs.

Great flexibility in test set-up
Quick, easy collection and interpretation of data
Accurate, reliable and consistent results assist in maintenance decisions

Iris Power Stator Wedge Analyzer (SWA)

Stator Wedge Analysis

Learn More

Iris Power EL CID Evolution is the third generation of this reliable, easy-to-use, stator core test. Receive results in less time and with lower costs than earlier EL CID models.

Repeatable tests
Determines if defects are on the surface, under conductors, or sub-surface
The ELCID instrument can be used to test turbo-generators, hydro-generators, and large motors

Iris Power EL CID Evolution

Core Testing (EL CID)

Learn More

Iris Power Robotic Inspection Vehicle – (RIV)

Core Testing (EL CID)

Learn More

Iris Power provides solutions for measuring the magnetic flux in the generator to determine if rotor winding shorted turns have occurred in order to plan maintenance requirements.

Employ algorithms that revolutionize the analysis of the flux data on salient pole rotors
Instant analysis of rotor winding insulation condition at any machine load
Allows for spot measurement over several days and during normal generator operation with intervention from an operator

Iris Power RFAII-S

Magnetic Rotor Flux Monitors

Learn More

IrisPower FluxTracII-S

Magnetic Rotor Flux Monitors

Learn More

Iris Power TFProbe

Magnetic Rotor Flux Probes

Learn More

Iris Power GuardII

Motors and Generators Partial Discharge Monitoring

Learn More

Iris Power’s solutions provide information on the condition of machine insulation, such as cleanliness, aging, resin decomposition and resin cure.

Connect all three phases and the ground at one time
No interaction from test personnel needed
Measurements are automatically controlled and stored by a computer connected to the instruments

PDTech Dielectric Response Analyzer (DRA-3)

Insulation Degradation

Learn More

Iris Power DCR 60-2

Insulation Degradation

Learn More

Iris Power combines shaft voltage, current monitoring and endwinding vibration monitoring fielded through a single system.

Machine operating condition data such as active power, reactive power, stator voltage, winding temperature, etc is sent to plant SCADA systems
Continuous collect data from multiple rotating machines to lower burden on plant personnel
Repair costs in detecting problems at early stage are often only 1% of the cost incurred if failure occurs

Iris Power GuardII

Motors and Generators Partial Discharge Monitoring

Learn More

Iris Power SMTracII

Shaft Voltage Monitoring

Learn More

Solutions

Iris Power provides a variety of solutions to align with existing systems, processes and automation requirements.
