Vault Transformers

Power Grid

Vault Transformers

Qualitrol combines unique algorithms, sensors and monitors to provide you with unique solutions for retrofits and new build opportunities.

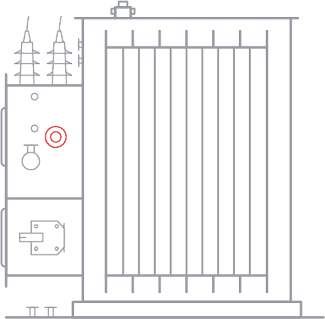

Temperature

Overheating in a transformer will acclerate the aging process of the celulose paper and other insulation materials. According to IEEE Standards C57.91, approximately each 6-8 degree increase in temperature will doubles the rate of decay in the transformer limiting it's useful life.

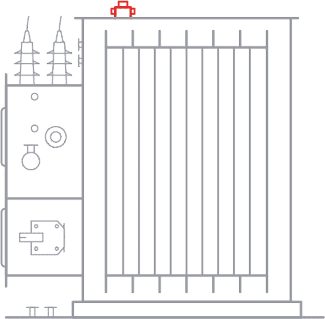

Pressure

Pressure builds within a transformer due to temperature increases sustained during an internal fault situation. Qualitrol manufactures a variety of pressure devices to mitigate pressure build-up within a transformer.

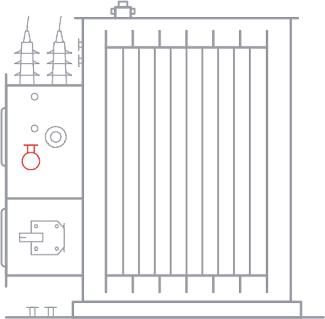

Liquid Level

Often overlooked as an important indicator, measuring oil level is a necessity as it monitors the insulating fluid in the transformer. A high level may indicate overheating conditions as the oil is expanding or indicate over-filling of the tank. A low level may indicate a leak or a catastrophic issue.

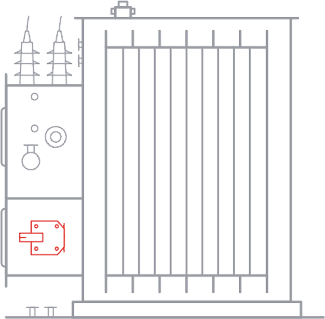

Dissolved Gas

Dissolved gas is a vital indicator of the winding health of the transformer. Overheating and arching liberate a variety of gases that can be measured and used to pinpoint potential problem areas to avoid catastrophic failures.

Customer Value

30 yrs

Average Age Vault Network Infrastructure

1946

Year Qualitrol Created Core Gauges

$50B

Estimated Cost of Power Outages for US Businesses

Avoid a Short & Long Term Catastrophic Failure

SYMPTOM CHECKER

Overheating Overpressure

Overheating in a transformer can signal a potential issue and cut the useful life of the asset exponentially as the temperature rises. Excess heat in a transformer causes a breakdown in cellulose paper and other insulating materials inside.

Understand the temperature profile within the transformer and provide a window into the asset to mitigate the risks and plan preventative actions before its too late
Basic thermometers provide insight into oil temperatures with local indication or remote alarming capabilities depending on the need
Variety of transformer monitors to trend temperatures and have local indication and alarming capabilities.

Qualitrol 506 Vault Intelligent Transformer Monitor

Intelligent Transformer Monitors

Learn More

s-m

Qualitrol 150/151 Side-Mount Thermometer with 4″ Dial

Direct Mount Thermometers

Learn More

Qualitrol 165/167 and AKM 47080 Side-Mount Thermometer with 5″ Dial

Direct Mount Thermometers

Learn More

Qualitrol 507 Intelligent Transformer Monitor

Intelligent Transformer Monitors

Learn More

Qualitrol 505 Intelligent Transformer Monitor

Intelligent Transformer Monitors

Learn More

m-l

Qualitrol 509 Intelligent Transformer Monitor

Intelligent Transformer Monitors

Learn More

Over pressure situations in a transformer can come from a variety of issues including potential fault situations.

Dissipate the pressure before a possible tank rupture
Pressure and vacuum indicators may also be utilized to give an instantaneous reading of pressure fluctuations

m-l

Qualitrol LPRD/208/213/216 Large Pressure Relief Device

Pressure Relief Devices

Learn More

Qualitrol 050 Pressure Control Indicator

Pressure Controls

Learn More

Directional Shield

Pressure Accessories

Learn More

Packages

Qualitrol offers a variety of basic and advanced sensors that can be upgraded with levels of functionality to help meet your condition based monitoring needs.

Basic

Advanced

Total
