Iris Power EL CID™ Evolution – Low-flux Core Test Instrument

Offline Low Power Testing of Stator Core Inter-Laminar Insulation


The EL CID™ Low Power Core Tester provides offline testing of inter-laminar insulation breakdown within a stator core. The only alternative to the Iris Power EL CID™ Evolution Low-Flux Core Test is the Ring Flux (full flux) test which requires large power supplies, considerable manpower, and expensive infrared viewing cameras.

Motor
Hydro Generator
Turbine Generator
Works with These Assets

Features



  • Only one technician is needed to perform the low-flux core test using the EL CID™ Evolution tester
  • Safe for core and operator, unlike Ring Flux test which is potentially damaging to the unventilated core
  • Iris Power EL CID™ Evolution Low-Flux Core Tester instrument comes with an excitation kit to conduct the test at only 4% of normal operating flux.
  • Measurement results are digitally stored in the PC for analysis and automatic report generation.
  • Any imperfections in the core inter-laminar insulation produce fault currents which are detected by a Chattock coil and analyzed by the Iris Power ELAN software.
  • Future results can be compared to past results for trend analysis.

Advantages

  • Tests are repeatable
  •  Immediate test results are available for local analysis and email
  •  Determines if defects are on the surface, sub-surface, or under conductors
  •  Tests with or without windings
  •  More sensitive in detecting buried faults
  •  Partial retests of core are possible with ability to merge results to obtain a complete picture of the core condition
  •  Trending of previous results
  •  Excellent quality assurance test

Group Created with Sketch. Kit contents

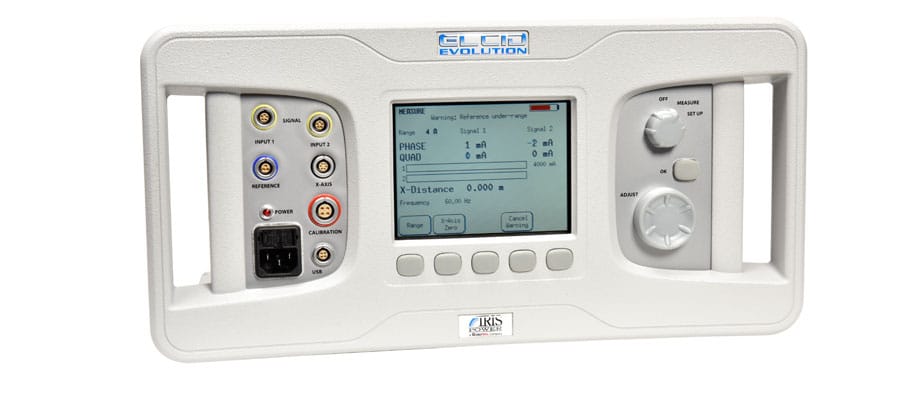

  • EL CID™ Evolution Low-Flux Core Test Instrument
  • Chattock Sensors (10, 20, 25 and 30 cm)
  •  Reference Sensor
  •  Magnetic Manual Trolley
  •  Step Iron Trolley
  •  Calibration Unit
  •  Switched Turbo Excitation System including 30 m of excitation cables
  •  Volt Meter and Clamp-on Ammeter
  •  ELAN CD with Software Licence
  •  Handbook

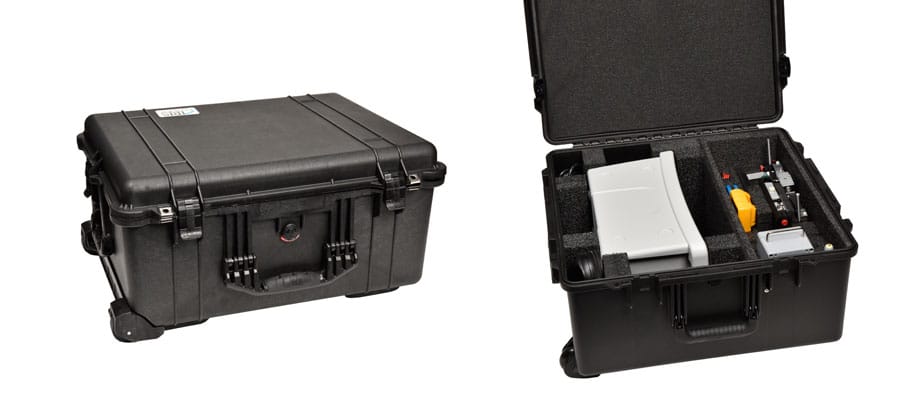

  •  Two Wheeled Transit Cases
