Iris Power TGA-B

Periodic Online Partial Discharge Monitoring

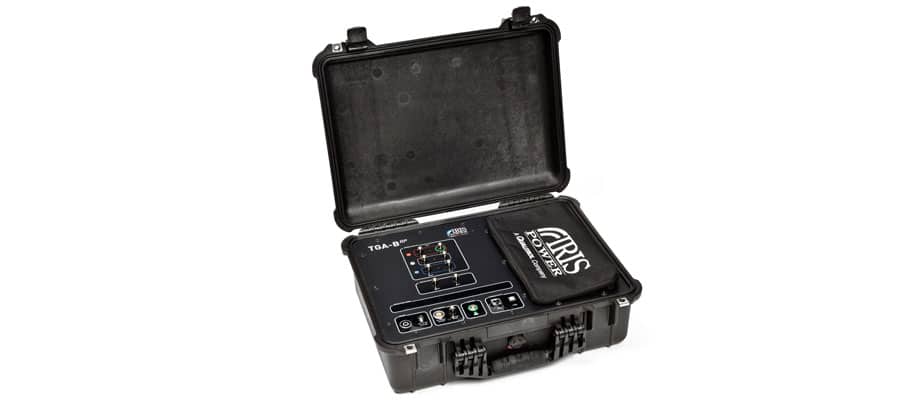

The TGA-B is a portable instrument to monitor PD in 50/60 Hz motors equipped with Iris Power Epoxy Mica Capacitor Couplers

Motor
Turbine Generator
Works with These Assets

Features

  • Reliably identify loose, contaminated, overheated or poorly impregnated stator windings to aid in assessing the risk of stator winding failure.

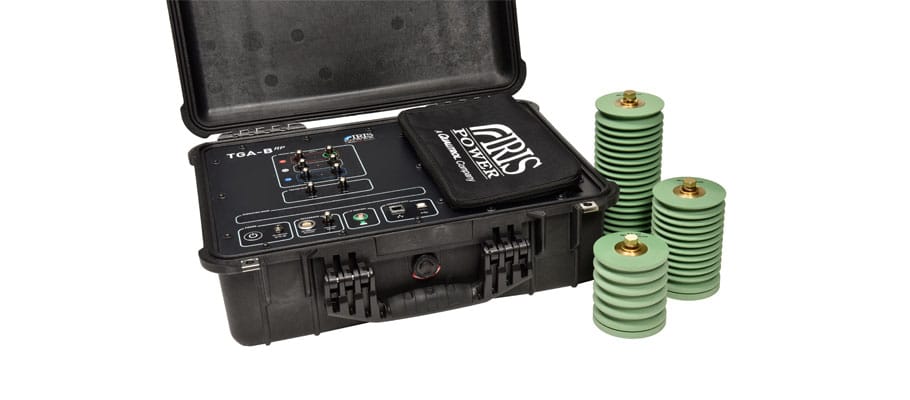

  • Easily connected to test with permanently installed Iris Power 80 pF Epoxy Mica CapacitorsTM (EMCs) .
  • Shortest pulse width (FWHM): less than 2.5 ns, at the 3 dB cut-off magnitude
  • Magnitude ranges:

2- 34 mV in 2 mV steps

5-85 mV in 5 mV steps

10-170 mV in 10 mV steps

20-340 mV in 20 mV steps

50-850 mV in 50 mV steps

100-1 700 mV in 100 mV steps

200-3 400 mV in 200 mV steps

Group Created with Sketch. Application

  • Reliably identify loose, contaminated, overheated or poorly impregnated stator windings to aid in assessing the risk of stator winding failure.
  • Easily connected to test with permanently installed Iris Power 80 pF Epoxy Mica CapacitorsTM (EMCs) and/or Iris Power Stator Slot CouplersTM (SSCs)
  • Factory-configured to work with specific types of machines
